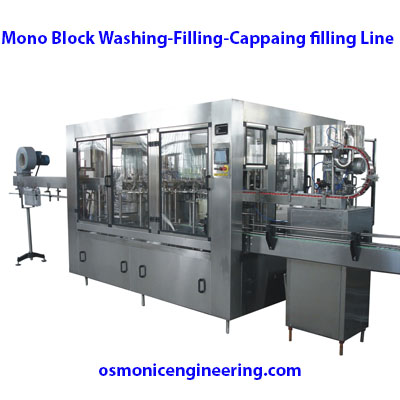

Tri-block washing/filling/capping machine (Non-carbonated water):
Description:
The machine is a automatical multi-functional washing, filling and capping equipment. The washing, filling and capping 3 parts are integrated into one machine.
The machine is used in washing, filling and capping different kinds of non-carbonated drinks, such as oil & vinegar, wine, mineral water and pure water.
Main technical parameters:
|
Capacity (500ml) (B/H) |
5000-8000BPH for 500ml PET bottle Maximal Filling Volume: 4000 liter per hour
|
|
Suitable Bottle |
H=160-320 Φ=50-110 V=200-2000ml Size: 250ml-2000ml |
|
Applicable Cap
|
Standard Plastic Screw Cap or Sport Cap |
|
Gas PressureīŧMpaīŧ
|
0.6 |
|
Gas Consumption
|
0.3m3/min |
|
Filling PressureīŧMpaīŧ
|
≤0.4 |
|
Power(KW)
|
5.03 |
|
Dimension(mm)
|
2830×2030×2030 |
|
Weight(kg)
|
4200 |
Features:
1. The suspending bottle-neck clamping design make the bottle stable during the high-speed moving conditions. By changing a few parts, it can meet the need of production of different types of bottles easily.
2. The special stainless steel clip is adopted and the clip will not contact the area above the bottle's screw thread. Nozzle is in the clip can guarantee the complete wash of the interior of the bottle.
3. The advanced gravity filing technology used in this machine make the filling quickly, steady and accurate.
4. Magnetic torque is used for screw capping. And the power of screw capping can be adjusted freely. Capping is reliable and will not harm the caps.
5. Advanced technologies, such as human-machine interface touch-screen and PLC program control are adopted in this machine.
