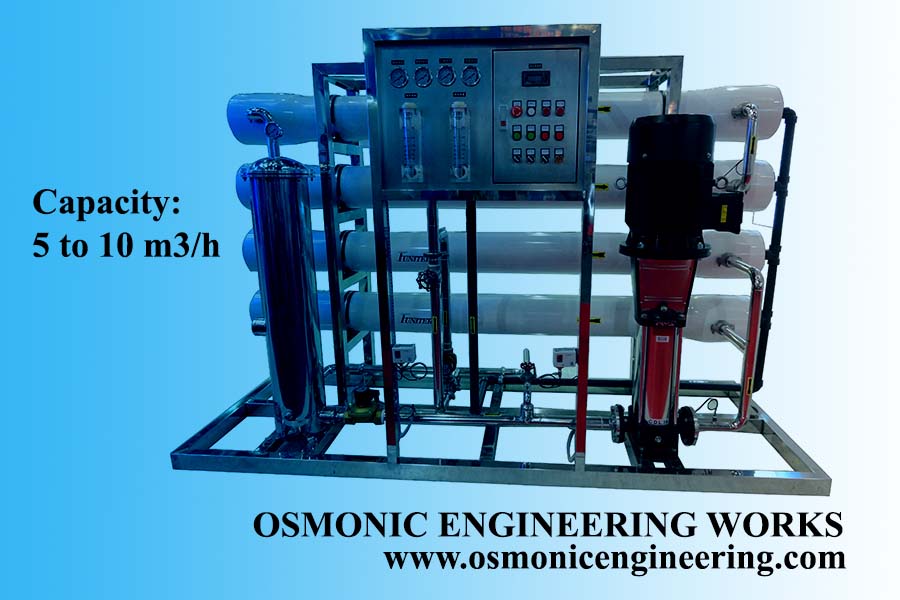

Water Treatment Plant (RO)
General Description:
Water capacity: 5000LPH – 10000LPH
Rated voltage: AC 380V/400V/415V/240V, 50/60Hz; 3-Phase 4-wire.
Desalination rate: 99.8%.
Recovery rate: 65%-85%.
Ion removal rate: 99.5%
Bacteria: 99.8%
Working temperature: 5-40°C.
Tech adopted: pre-treatment + RO system
|
|
Description |
|
|
Pre-treatment System |
|
|
Booster Pump:CNP/Grundfos |
|
Multimedia Filter:SS304/FRP |
|
|
Activated Carbon Filter: SS304/FRP |
|
|
Water Softener: SS304/FRP |
|
|
Brine tank:PE |
|
RO System |
|
|
|
Precision Filter: SS304/FRP |
|
High Pressure Pump: CNP/Grundfos |
|
|
RO membrane:HP/Dow/Hydranutics/Tory |
|
|
RO membrane housing-SS316/FRP |
|
|
Permeate water flow meter |
|
|
Concentrate water flow meter |
|
|
Permeate conductivity meter |
|
|
RO frame: SS304 |
|
|
Pipes: High pressure part-SS304, Low pressure part-UPVC |
|
|
Inlet magnetic valve |
|
|
Inlet flush valve |
|
|
Pressure Gauge |
|
|
Pressure Switch |
|
|
|
Electrical Control System |
|
|
PLC + Touch Screen/Computer control/Electrical control |
|
|
Control Cabinet: SS304/Power coated mild steel |
