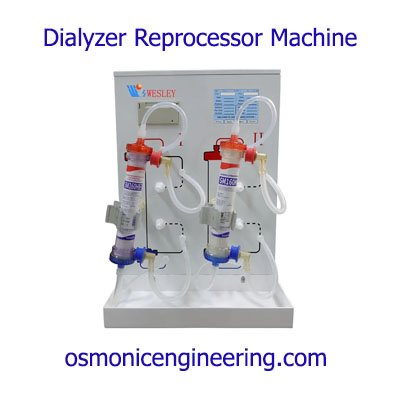

Automatic Dialyzer Re-processor Machine

Features:

• Fully automatic reprocessing& disinfecting cycles.
• Device to rinse, clean, test & disinfect reusable dialyzer.
• Timings based on Disinfectant choice and Dialyzer type
• Use of RO water and chemicals based on Dialyzer Type and Make during Cleaning process
• Requires no dedicated chemicals.
• Industry-low RO water consumption.
• Accurate and optimal use of disinfectant by load cell
• Dialyzer should be assessed for leakage tests.
• Dialyzer data base
• Patient data record
• Customizable process parameters, menus, sequences provide unmatched flexibility.
• In built printer provides documentation of dialyzer status with time stamp.
• In built alarm like RO pressure alarm, Chemical flow alarm, Bundle volume failure alarm, incomplete system disinfection/system rinsing alarm, pressure leak test alarm.
• Incomplete system disinfection alarm to avoid cross contamination.

Specifications:

• Purity: RO Water in accordance with AAMI/ANSI Standard
• Inlet Pressure: 20 psi – 50 psi
• Inlet temperature: 10 -40 degree centigrade
• Drain: Minimum flow 10 liter/min
• Drainage height: lower than the bottom of machine.
• Disinfectant supply: Maximum suction distance >1m

     Chemical Requirements:

• Consumption/dialyzer: 20-45ml disinfectant.
• Machine disinfection/channel: 60ml disinfectant.
• Reprocessing time 12 minutes per cycle

     Machine cleaning:

• Sanitize: 40-50ml but it can be set according to real situation. Only one time in A day.
• Water consumption: 8 L/ dialyzer.

     Display / channel:

• Type: touch control LCD
• Viewing area: 115*87mm
• Luminance: 200 cd/m2
• Color of illumination: color

     Data display:

• Reprocessing data
• Preforming status
• Failure massage
• Date and time
• Target concentration for the disinfectant
• Safety alarms
• Self-test on system start up
• Check system
• Loose connector
• Dialyzer TCV Failure
• Dialyzer membrane pressure drop &Leak test failure
• Incoming water pressure failure
• Empty solution
• Showing error code when occur any problem while running self test and reprocess

      Technical data:

• Dialyzer type: All types with common connectors
• Process, automatic: Rinse, Clean, Test, Affusion.
• Volume test range: 0-200 ml
• Volume test accuracy: Typically, within 5 ml of the true volume
• Volume test Repeatability: +- 3% to +- 10%
• Water consumption: 7-8 Liter/cycle
• Body materials: Steel
• Physical dimension: Area: (480 x 380 x580mm)
• Power input : 220-240VAC, 50 Hz with standard plug
