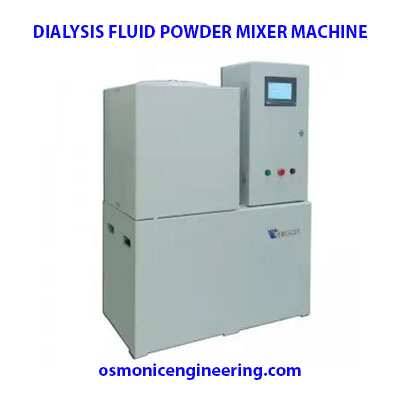

Automatic Dialysis fluid A and B powder mixing system

Technical Data:

(1）Voltage：AC220V±10%；Frequency：60Hz±1%；Power：1KW

(2）Water requirement: temperature 10℃～30℃，The water quality meets or surpasses the water quality requirements of dialysis water in YY0572-2015 Water for Hemodialysis and Related Therapeutic Use.

(3）Environment: ambient temperature 5℃～40℃, relative humidity not more than 80%, atmospheric pressure 70KPa ～106KPa, no strong acid, strong alkali and other volatile gases, no dust and electromagnetic interference, avoid direct sunlight, and ensure good air fluidity.

(4）Drainage: Drainage outlet (≥ 1.5 inch), the ground should be waterproof and leakage.

(5）Installation: Installation area and weight: ≥ 1 (length * width = 1x2) square meters, the total liquid-filled weight of the equipment is about 200Kg.

(6) Preparing concentrated liquid: Automatic water inlet, deviation ≤1%

(7) The compounding of concentrated liquid is controlled by PLC program. It adopts 7-inch full-color touch screen and simple operation interface, which is convenient for medical staff to operate.

(8) Fully automatic liquid distribution program, automatic water injection, regular mixing, filling and other working modes; fully dissolve powder A and B, and prevent the loss of bicarbonate caused by excessive mixing of liquid B;

(9) Filter: filter the undissolved particulate matter in dialysate, make dialysate meet the requirements of hemodialysis, effectively ensure the quality of concentrated liquid;

(10) Fully automatic flushing and one-button disinfection procedure control can effectively prevent bacterial breeding.

(11) The disinfectant is open and the residual concentration of the disinfectant meets the requirements of the standard after the disinfection procedure is completed.

(12) Valve components are all made of anti-corrosive material valves, which can withstand long immersion of highly corrosive liquids and have long service life.

(13) The material of pipe fittings is made of health grade stainless steel 304 and 316L, which meets the requirements of corrosion resistance.
